Key Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Part Number | EP-PB30 | Series / reference | Bronze-Lined |
| Bore d (mm) | 30 | Outside diameter D (mm) | 66 |
| Width B (mm) | 37 | Inner-ring width C (mm) | 25 |
| d1 min (mm) | 34.8 | R1s / R2s min | 0.6 / 0.6 mm |
| Articulation α | 17° | Dynamic load Cr | 63 kN |
| Static load C0r | 148 kN | Weight | 610 g |
| Lubrication | Relubrication required | Sealing | Open reference construction |
| Sliding pair | Steel / bronze | Surface / liner | Bronze liner in the outer race |
Product Description
EP-PB30 construction and application notes

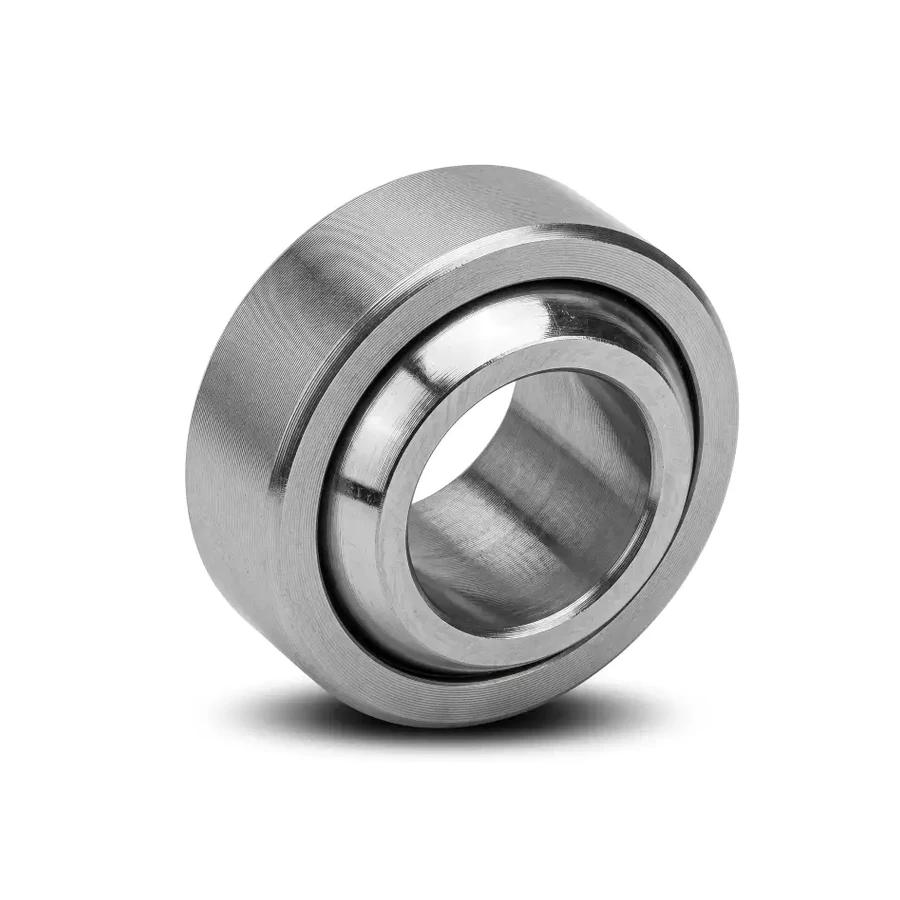

EP-PB30 is the 30 mm-bore model in the PB Bronze-Lined family. Its nominal envelope is d 30 mm × D 66 mm with B 37 mm overall width.
Outer race lined with a bronze liner, with a lubricating groove and hole in the outer ring. The steel/bronze sliding pair is intended for lubricated pivoting service, with inspection of wear, lubrication path and adjacent pin condition remaining part of maintenance. On EP-PB30, that construction is paired with a 30 mm bore, 66 mm outside diameter, 37 mm overall width, 63 kN dynamic rating and 17° catalogue articulation value.
For EP-PB30, the PB family uses a bronze-lined sliding interface and a lubricated pivoting service strategy. Its construction should be compared with PTFE-lined and steel-on-steel alternatives by considering lubrication access, motion pattern and the available joint envelope.
Installation and fit
For EP-PB30, start the fit review from its 30 mm bore and 66 mm outside diameter, then check how the 37 mm bearing width is supported by the housing shoulders. The fitting-tolerance resource includes H7 and h6 among the reference classes; final fit still depends on ring loading, housing stiffness, temperature and the machine interface.
Selection Context
How to verify EP-PB30 in the joint
For EP-PB30, when this model is shortlisted, use the machine drawing to confirm the surrounding shoulders before looking at alternatives. Check the shoulder geometry around the listed width and outside diameter, especially when the old bearing or housing shows wear. The service review should record motion amplitude, inspection access and the way grease or a maintenance-free liner is expected to work. Use the enquiry form to keep the selected model attached to the application, drawing and document request.
Cross-Reference
Brand reference for EP-PB30
Cross-reference designations help identify the family. They do not replace dimensional, suffix, sealing and application checks.
| Brand | Reference designation | Verification note |
|---|---|---|
| IKO | PB30 | Reference designation; verify dimensions and suffix. |
Technical Documents
Drawings and order documents
Related Products
Compare the same bore across other constructions
RFQ
Request a quote for EP-PB30
For EP-PB30, include quantity, application, operating environment and any drawing or document requirement. The enquiry area keeps this 30 × 66 × 37 mm model in context so the quotation can be tied to the exact product rather than only the family name.
Model: EP-PB30
